Dji
Inspire 1
Inspire 1
Overview

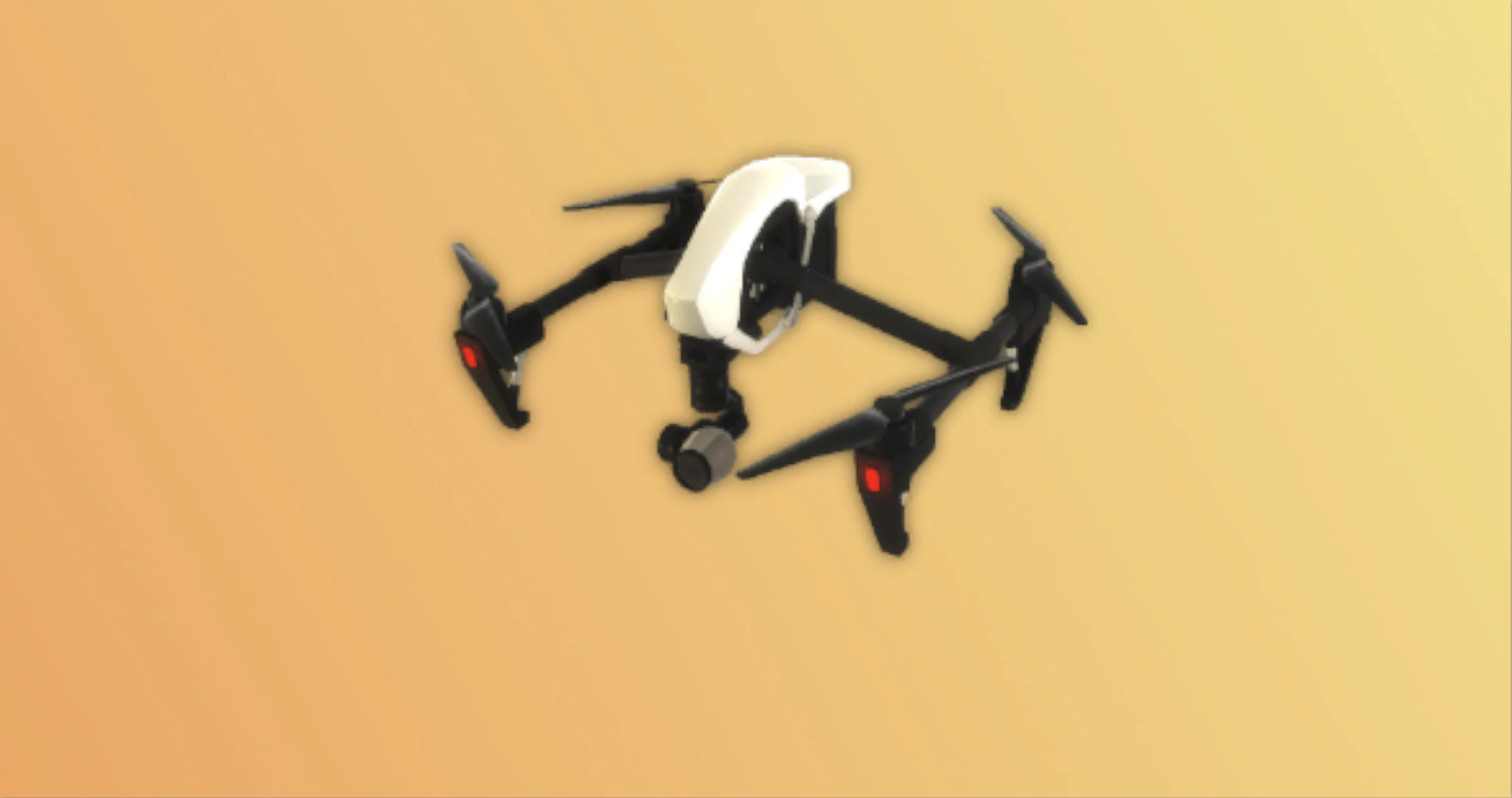

The first generation of the Inspire series from DJI. This quadcopter includes GPS, 3-axis gimbal, and landing gear. Released in 2014 the Inspire 1 features a top speed of 22 m/s and a flight time of around 18 minutes.
Specifications
Aircraft
| Model | Inspire 1 |
| Manufacturer | DJI |
| Copter | Quadcopter |
| Satellite Positioning Systems | GPS |
| Operating Temperature Range | 14° to 104℉ (-10° to 40℃) |
| Max Ascent Speed | 5 m/s |
| Max Descent Speed | 4 m/s |
| Max Speed | 22 m/s |
| Max Pitch Angle | 35° |
| Max Angular Speed | 150°/s |
| Max Flight Time | Approx. 18 minutes |
| Hover Accuracy Range | Vertical: ±0.5 m Horizontal: ±2.5 m |
| Released | 2014 |
Gimbal
| Stabilization | 3-axis (pitch, roll, yaw) |
| Controllable Range | Pitch: -90° to +30° Pan: ±320° |
| Max Controllable Angular Speed | Pitch: 120°/s Pan: 180°/s |
| Mechanical Range | Pitch: -125 to +45° Pan: ±330° |
| Angular Vibration Range | ±0.03° |
