Autel

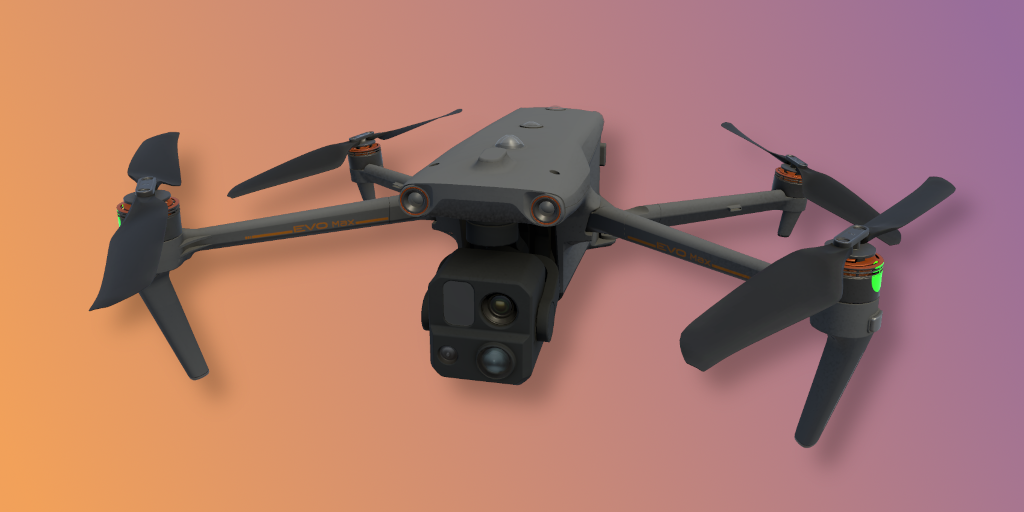

Evo Max 4T
Evo Max 4T
Overview
Specifications
Aircraft
| Model | Evo Max 4T |
| Manufacturer | Autel Robotics |
| Copter | Quadcopter |
| Satellite Positioning Systems | GPS |
| Operating Temperature Range | -20℃ to +50℃ (without load) -20℃ to +40℃ (full load) |
| Max Ascent Speed | 8 m/s |
| Max Descent Speed | 6 m/s |
| Max Speed | 23 m/s |
| Hover Accuracy Range | Vertically ±0.1 m (when visual positioning works normally) ±0.5 m (when GNSS works normally) Horizontally ±0.3 m (when visual positioning works normally) ±0.5 m (when high-precision positioning system works normally) |
| Max Flight Time | 42 minutes |
| Released | 2023 |
Gimbal
| Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
| Max Controllable Angular Speed | 100°/s |
| Angular Vibration Range | <0.005° |
| Mechanical Range | Tile: -135° to 45° Roll: -50° to 50° Pan: -45° to 45° |
| Controllable Range | Tilt: -90° to 30° |
